Project Description

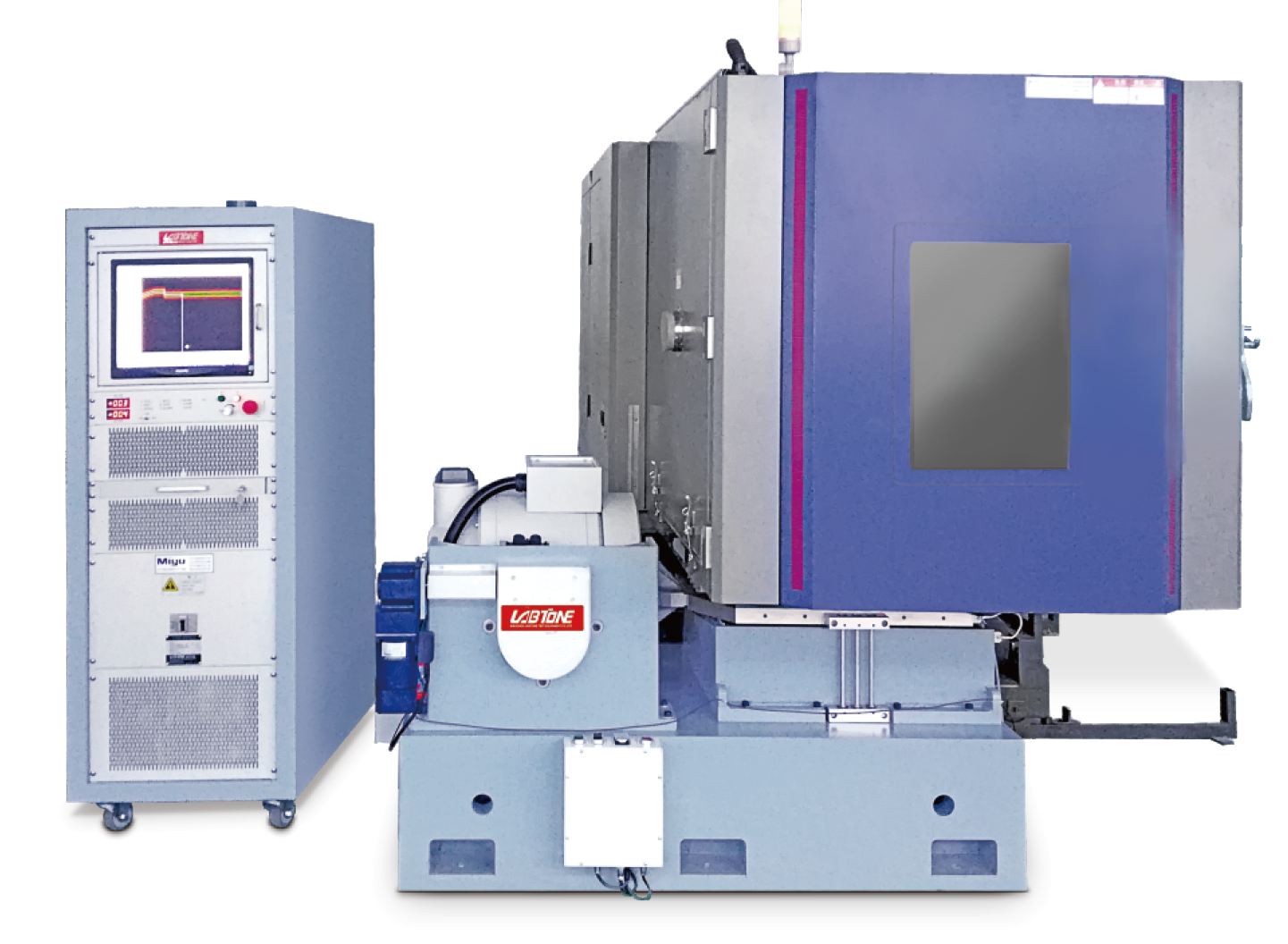

複合環境試驗系統

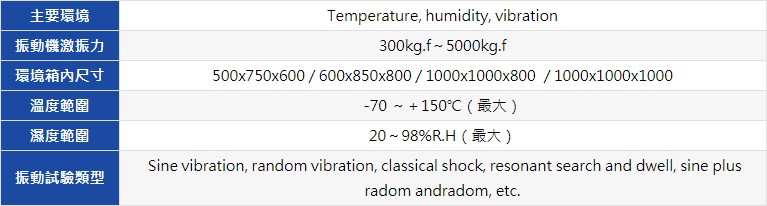

技術參數 Specifications
主要環境 | Temperature, humidity, vibration | ||
振動機激振力 | 300kg.f~5000kg.f | ||
環境箱內尺寸 | 500x750x600 / 600x850x800 / 1000x1000x800 / 1000x1000x1000 | ||
溫度範圍 | -70 ~+150℃(最大) | ||
濕度範圍 | 20~98%R.H(最大) | ||
振動試驗類型 | Sine vibration, random vibration, classical shock, resonant search and dwell, sine plus radom andradom, etc. |
數據參數檔案下載:複合環境試驗系統

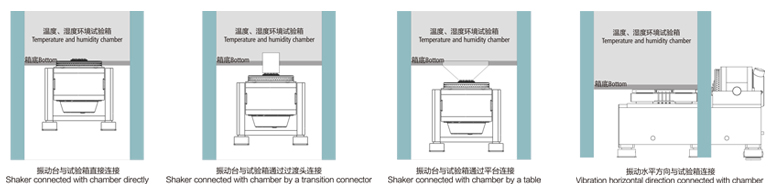

振動台與環境箱連接方式 Shaker and The Environmental Chamber Connection |
